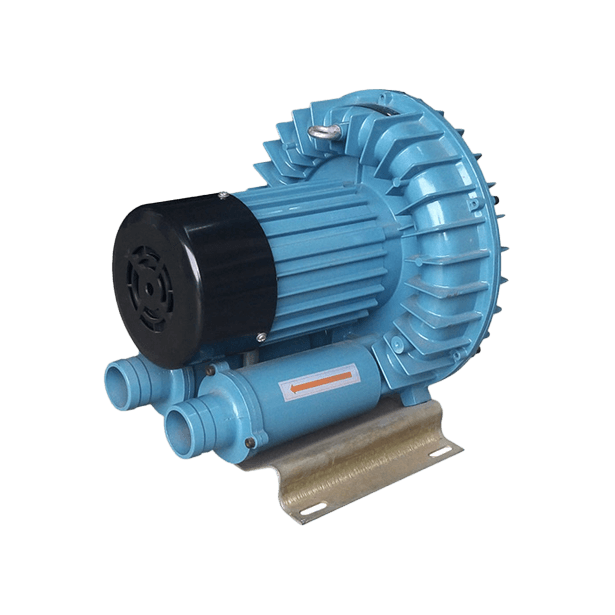

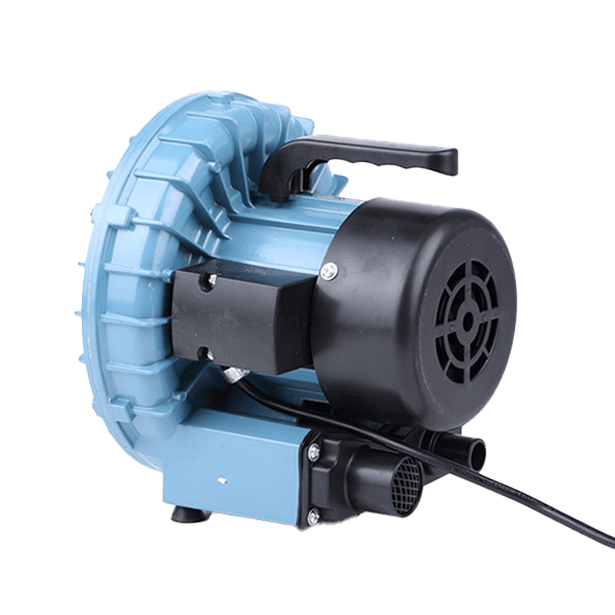

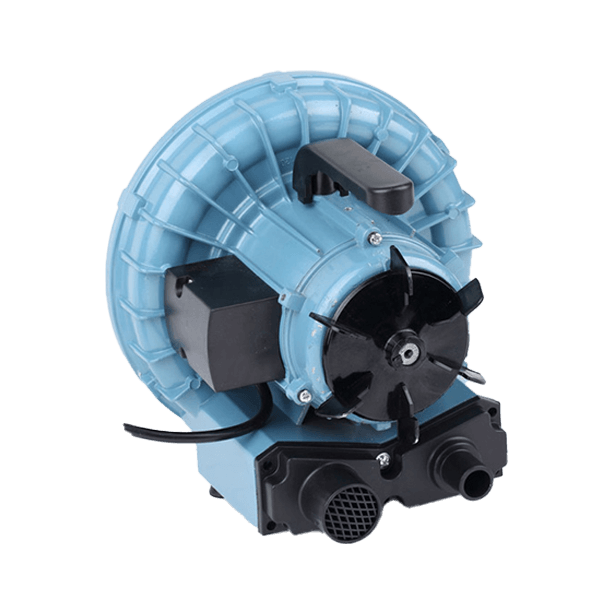

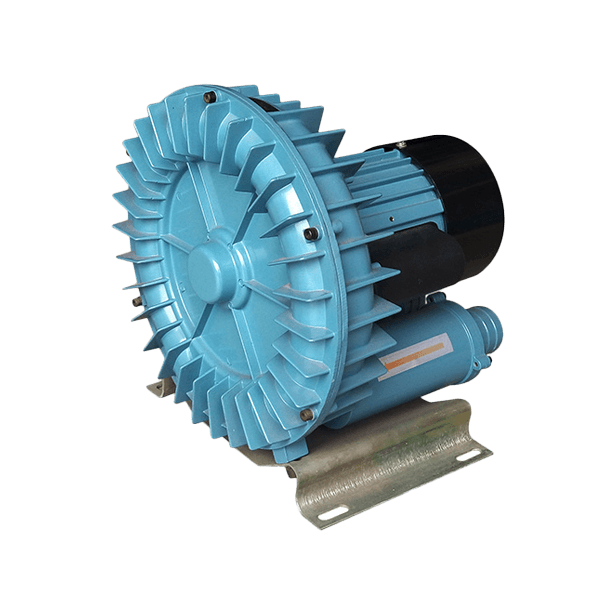

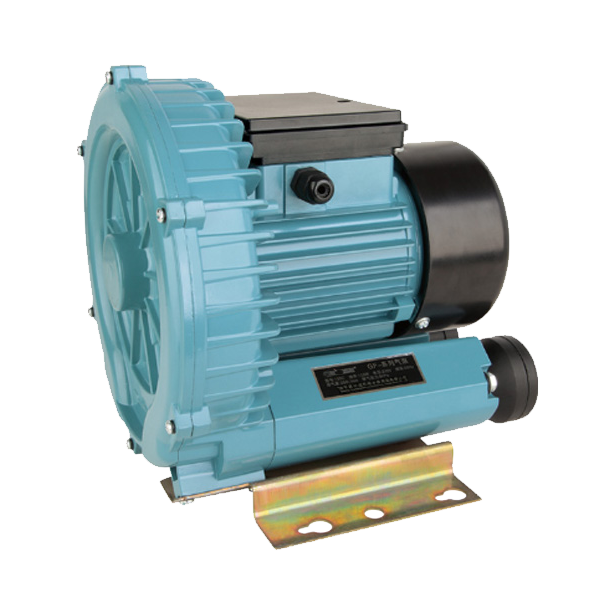

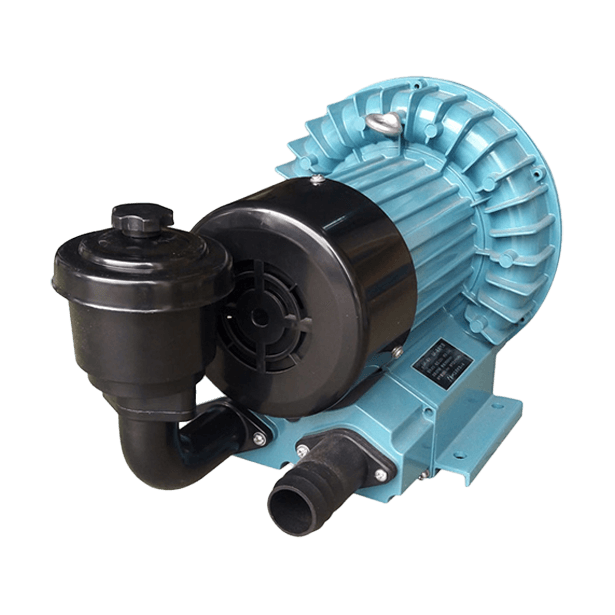

GF Series Air Pump

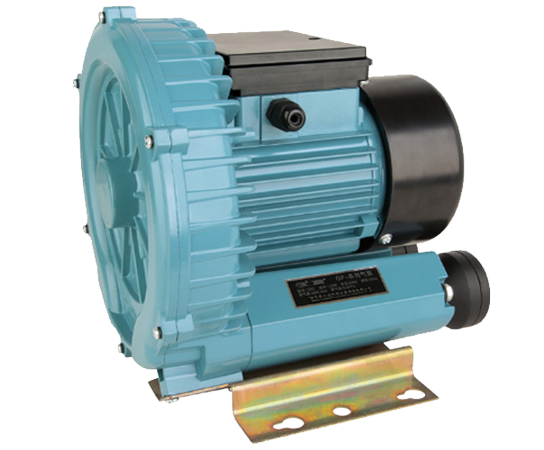

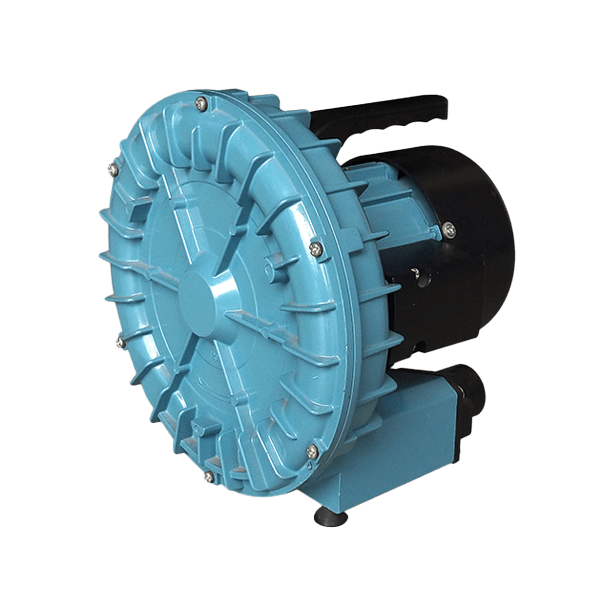

Centrifugal Vortex Aerator Pump

Centrifugal Vortex Aerator Pump

▪ High air output: 190 ~ 4300L/min（3000 ~ 68000GPH）
▪ Oil free operation
▪ Air dividers included
Wide Application

▪ Fish farms
▪ Industrial suction
▪ Textile industry
▪ Printing equipment
▪ Sewage equipment

Specifications

MODEL	POWER	AIR FLOW / PRESSURE	PRODUCT SIZE
GF-120	120W, 220V/50Hz	190L/min, 0.006Mpa	165x205x210mm
GF-120C	120W, 220V/50Hz	300L/min, 0.008Mpa	236x200x222mm
GF-180	180W, 220V/50Hz	300L/min, 0.008Mpa	200x230x225mm
GF-180C	180W, 220V/50Hz	540L/min, 0.01Mpa	255x230x250mm
GF-250	250W, 220V/50Hz	450L/min, 0.01Mpa	200x230x225mm
GF-370	370W, 220V/50Hz	620L/min, 0.01Mpa	220x250x260mm
GF-750	750W, 220V/50Hz	1050L/min, 0.014Mpa	230x295x260mm
GF-750A	750W, 380V/50Hz	1050L/min, 0.015Mpa	230x295x260mm
GF-1100	1100W, 220V/50Hz	1800L/min, 0.0145Mpa	335x335x350mm
GF-1100A	1100W, 380V/50Hz	2000L/min, 0.0145Mpa	335x335x350mm
GF-2200	2200W, 220V/50Hz	4300L/min, 0.024Mpa	380x380x400mm
