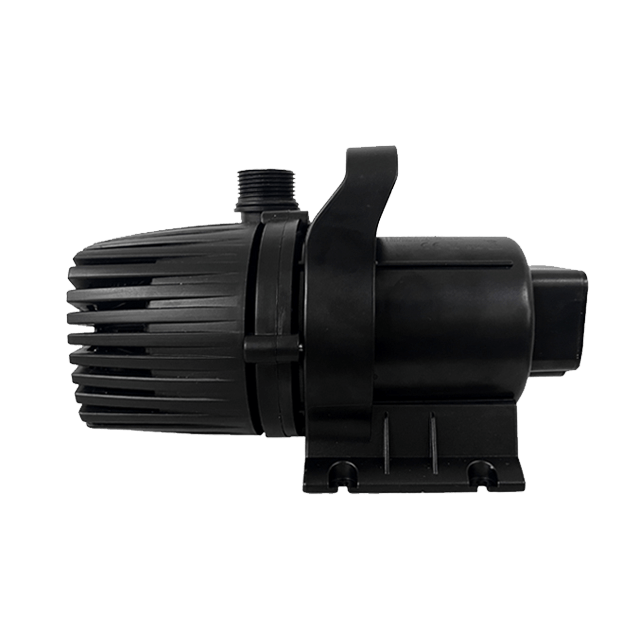

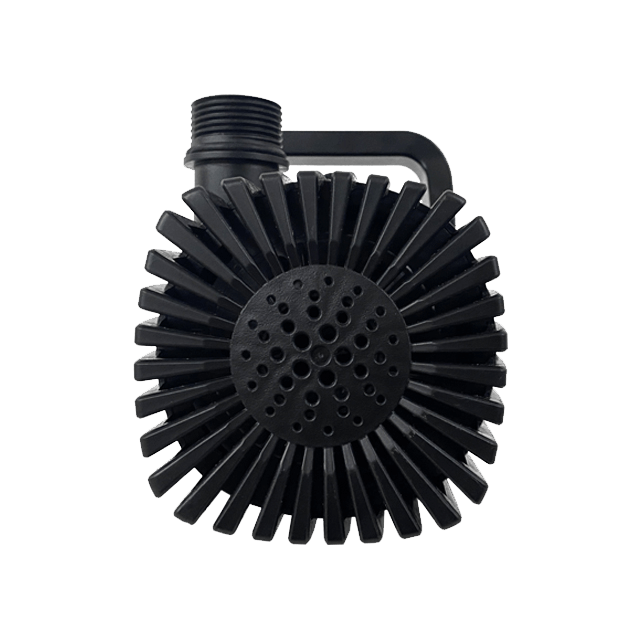

GHP Series Water Pump

Submersible Pond Pump

▪ High lift water pump up to 49ft

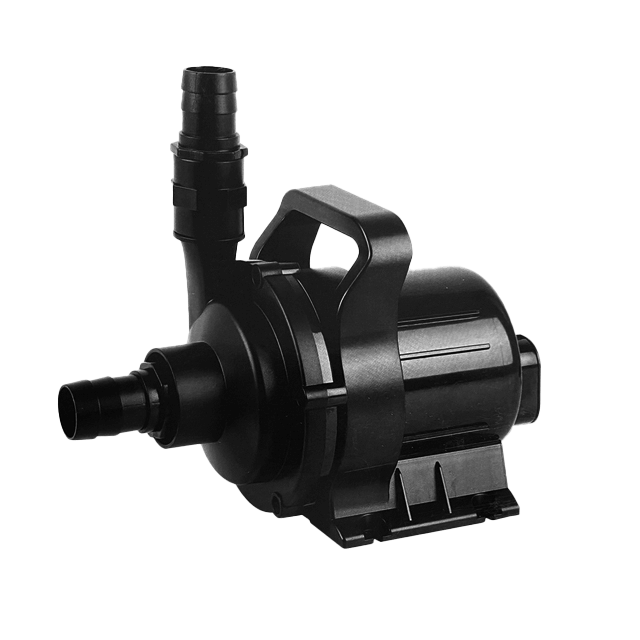

▪ Suitable for submersible / in-line use in both marine and fresh water
▪ Whisper quiet
Energy-efficient Asynchronous Pump

▪ More powerful than traditional magnetically driven pond pumps

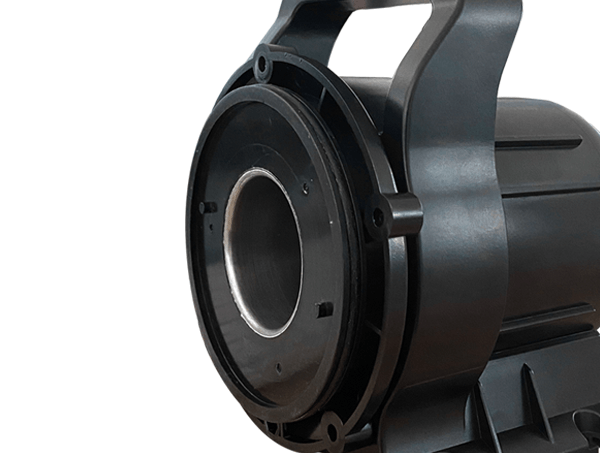

▪ The inlet and outlet are fixed with embedded screws

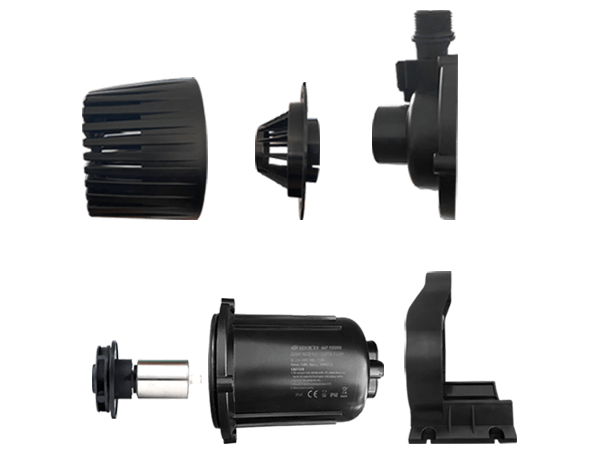

Durable Pump Construction

▪ Ceramic impeller shafts
▪ Energy efficient

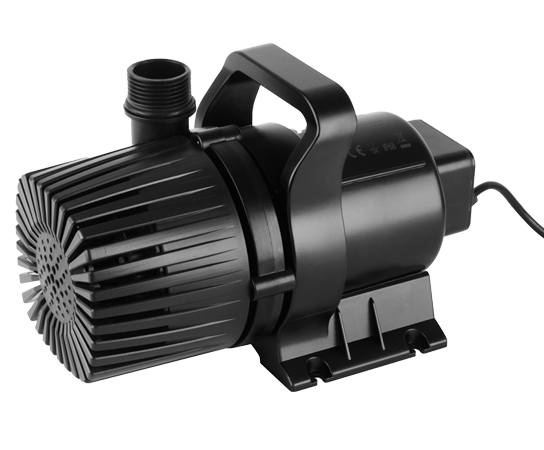

▪ Portable design with removable handle
Wide Application

▪ Ponds
▪ Fountains
▪ Waterfalls
▪ RAS

Product Specifications

MODEL	POWER	FLOW / HEIGHT	PIPE SIZE / PRODUCT SIZE
GHP-6000	150W, 100-120V/220-240V,50/60Hz	6000L/H(1585GPH),5m(16.4ft)	φ32mm(φ1 1/4"), 240x140x160mm
GHP-8000	200W, 100-120V/220-240V,50/60Hz	8000L/H(2110GPH),7m(23ft)	φ32mm(φ1 1/4"), 240x140x160mm
GHP-8000/10M	300W, 100-120V/220-240V,50/60Hz	8000L/H(2115GPH),10m(34ft)	φ32mm(φ1 1/4"), 280x140x180mm
GHP-10000	250W, 100-120V/220-240V,50/60Hz	10000L/H(2642GPH),9m(29.5ft)	φ32mm(φ1 1/4"), 280x140x180mm
GHP-12000	160W, 100-120V/220-240V,50/60Hz	12000L/H(3170GPH),4.5m(14.5ft)	φ50mm(φ2"), 280x140x180mm
GHP-15000	200W, 100-120V/220-240V,50/60Hz	15000L/H(3965GPH),5m(16.4ft)	φ50mm(φ2"), 280x140x180mm
GHP-15000/15M	600W, 100-120V/220-240V,50/60Hz	15000L/H(3965GPH),15m(49ft)	φ40mm(φ1 3/5"), 300x160x200mm
GHP-18000	250W, 100-120V/220-240V,50/60Hz	18000L/H(4750GPH),6m(20ft)	φ50mm(φ2"), 280x140x180mm
GHP-28000	550W, 100-120V/220-240V,50/60Hz	28000L/H(7400GPH),7m(23ft)	φ63mm(φ2 1/2"), 280x140x180mm
