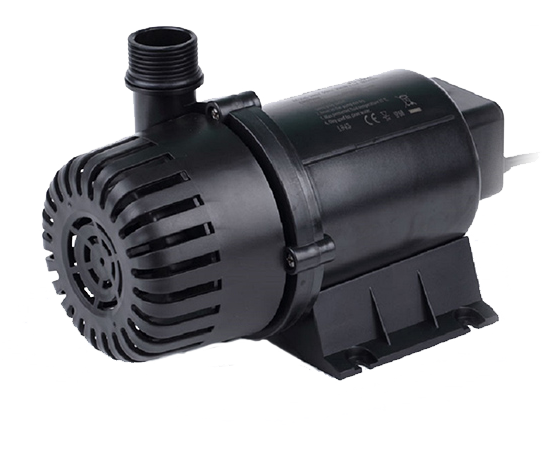

PG Series Water Pump

Pond Pump

Submersible Pond Pump

▪ High lift water pump up to 29.5ft
▪ Suitable for submersible / in-line use in both marine and fresh water
▪ Whisper quiet
Wide Application

▪ Ponds
▪ Fountains
▪ Waterfalls
▪ Water Circulation

Product Specifications

MODEL	POWER	FLOW / HEIGHT	PIPE SIZE / PRODUCT SIZE
PG-6000	150W, 220V/50Hz	6000L/H(1580GPH),5m(16.4ft)	φ32mm (φ1 1/4"), 230x100x150mm
PG-8000	200W, 220V/50Hz	8000L/H(2110GPH),7m(23ft)	φ32mm (φ1 1/4"), 230x100x150mm
PG-10000	250W, 220V/50Hz	10000L/H(2642GPH),9m(29.5ft)	φ32mm (φ1 1/4"), 270x120x170mm
PG-12000	160W, 220V/50Hz	12000L/H(3170GPH),4.5m(14.5ft)	φ50mm (φ2"), 270x120x170mm
PG-18000	250W, 220V/50Hz	18000L/H(4750GPH),6m(19.7ft)	φ50mm (φ2"), 270x120x170mm
PG-28000	550W, 220V/50Hz	28000L/H(7390GPH),7m(23ft)	φ93mm (φ2 1/2"), 280x120x190mm
